Inorganic Pre-coated Board Fireproof & Waterproof Board

Ice-Fire Panels are film-coated, available in hundreds of patterns and colors.

Inorganic Pre-coated Boards are single-colored, available in about a dozen colors.

Ice-Fire Panel is a new type of architectural decorative material, mainly manufactured by hot-pressing high-density fiber cement board with melamine-impregnated paper. It features Class A flame retardancy, waterproof and moisture-proof properties, thermal and acoustic insulation, light weight, and high strength. Its surface has high hardness, strong wear resistance and scratch resistance, and it is environmentally friendly and safe, containing no harmful substances.

Main Characteristics:

1. Fire Performance: Achieves Class A flame retardant standard, non-combustible when exposed to fire, produces no toxic smoke.

2. Waterproof & Moisture-Proof: Suitable for humid environments, low water absorption rate.

3. Environmental Performance: Zero formaldehyde formula, VOC emissions are nearly zero.

4. Durability: High impact strength, long service life.

5. Easy Construction: Can be directly applied over existing walls, convenient installation.

Application Scenarios:

• Hospitals, Schools, Laboratories: Fire-resistant, moisture-proof, easy to clean, creating a safe and comfortable environment.

• Commercial Spaces: Wear-resistant, easy to clean, suitable for high-traffic areas.

• Home Decoration: Rich surface treatment processes to meet different style needs.

• Special Environments: Good weather resistance, suitable for cold storage, high-temperature workshops, etc.

Ice-Fire Panels are widely used in hospitals, subways, hotels, schools, shop renovations, and municipal construction, making them an ideal indoor and outdoor decorative material.

Inorganic Pre-coated Board
A panel used for interior and exterior walls in places like subways and hospitals.

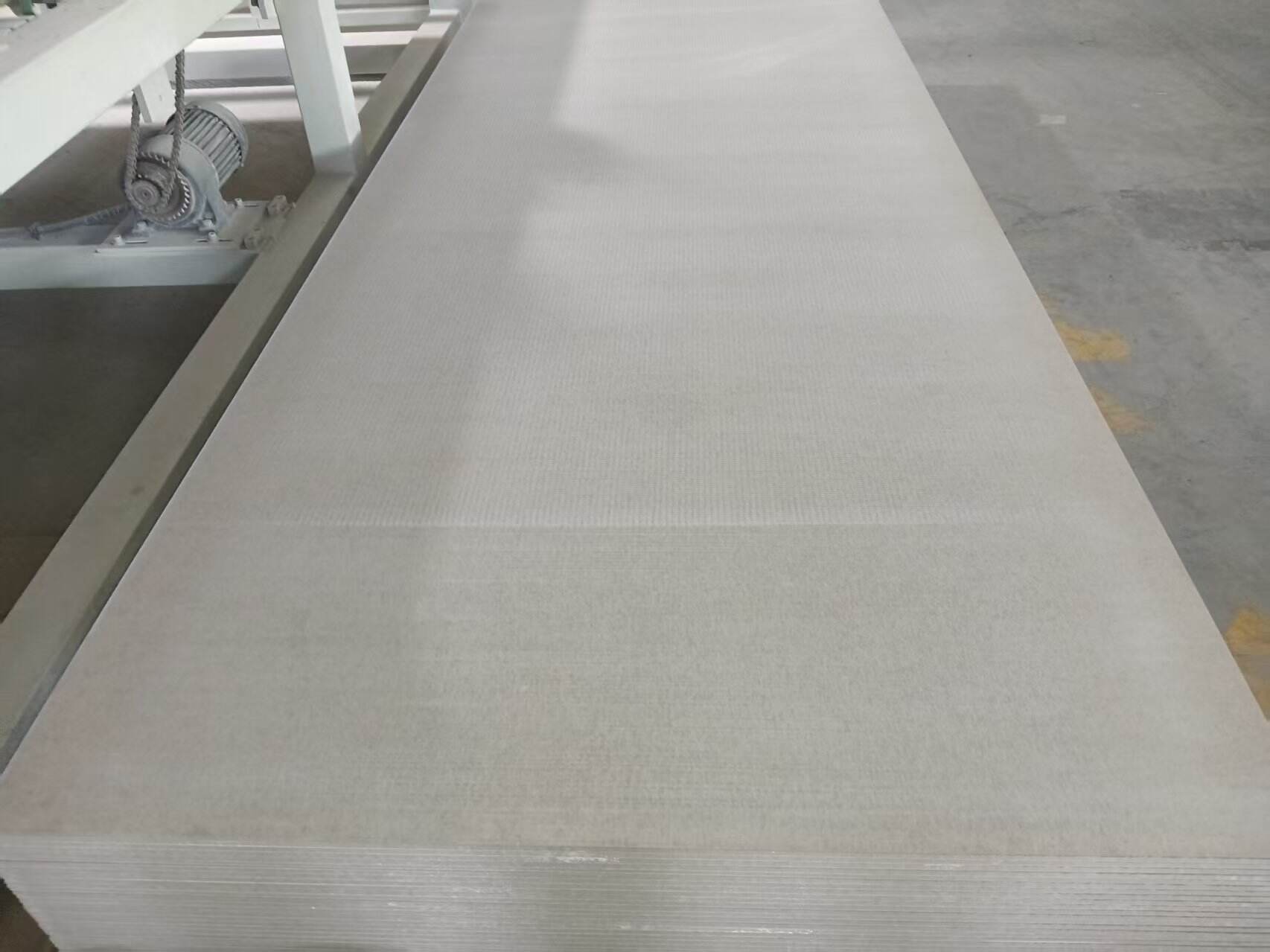

Inorganic Pre-coated Board, also known as a clean board, uses 100% asbestos-free calcium silicate board as its substrate, with a surface coated with special polyester. It possesses properties such as fire resistance, moisture resistance, antibacterial performance, and sound insulation. With a density of 1.0–1.2 g/cm³, it is lightweight and environmentally friendly, widely used in subways, hospitals, tunnels, schools, and other places. Its fire performance is Class A, and it exhibits excellent water resistance, corrosion resistance, and antibacterial properties, with easy installation.

Inorganic Pre-coated Board, also called a clean board or compact board (Anti-Beite board), is made from 100% asbestos-free calcium silicate board as the substrate. A layer of special polyester is coated on the surface of the substrate. Its main components include cement, mineral powder, fiber mesh, and other auxiliary materials.

Reference Materials
Inorganic pre-coated boards are lightweight, have good fire resistance, corrosion resistance, aging resistance, and water resistance, and are decorative materials with a Class A fire rating. Made from inorganic materials, these boards are environmentally friendly, moisture-proof, and mold-proof. When coated with antibacterial paint, their surface exhibits excellent antibacterial properties, making them suitable for use on interior and exterior walls in places such as subways, hospitals, tunnels, schools, sports venues, laundry rooms, and office buildings.

1. Eco-friendly: Unique manufacturing method, 100% asbestos-free substrate, no radioactive elements, no benzene, no formaldehyde, or other harmful substances.

2. Lightweight: Density of 1.0–1.2 g/cm³, reducing building foundation load and improving seismic resistance.

3. Non-combustible material: Made from Class A non-combustible calcium silicate board, ideal for fire-restricted interior decoration areas.

4. Cost-effective: Significantly lower cost than natural stone and large ceramic tiles.

5. Dimensionally stable: Smooth and flat surface, high flexural and impact resistance, low thermal expansion/contraction coefficient, minimal dimensional changes with temperature fluctuations.

6. Easy to install: Can be cut, sawn, or planed using standard tools; adheres firmly with glue, cement resin, or specialized double-sided tape.

7. Excellent water resistance: Passes water resistance tests, ideal for humid areas like bathrooms, kitchens, and toilets.

8. Excellent chemical resistance: Resistant to weathering, acids, alkalis, and chemicals, with superior stain resistance.

9. Non-dusting and antibacterial: Hard, wear-resistant special polyester surface prevents dust generation; smooth surface repels dust and inhibits bacterial growth. Products coated with antibacterial paint exhibit even better antibacterial performance.

10. Sound and thermal insulation: The calcium silicate substrate has low thermal conductivity, providing excellent thermal insulation.

Functions like marble (large-format ceramic tiles) but at half the price, with colors that marble cannot achieve.

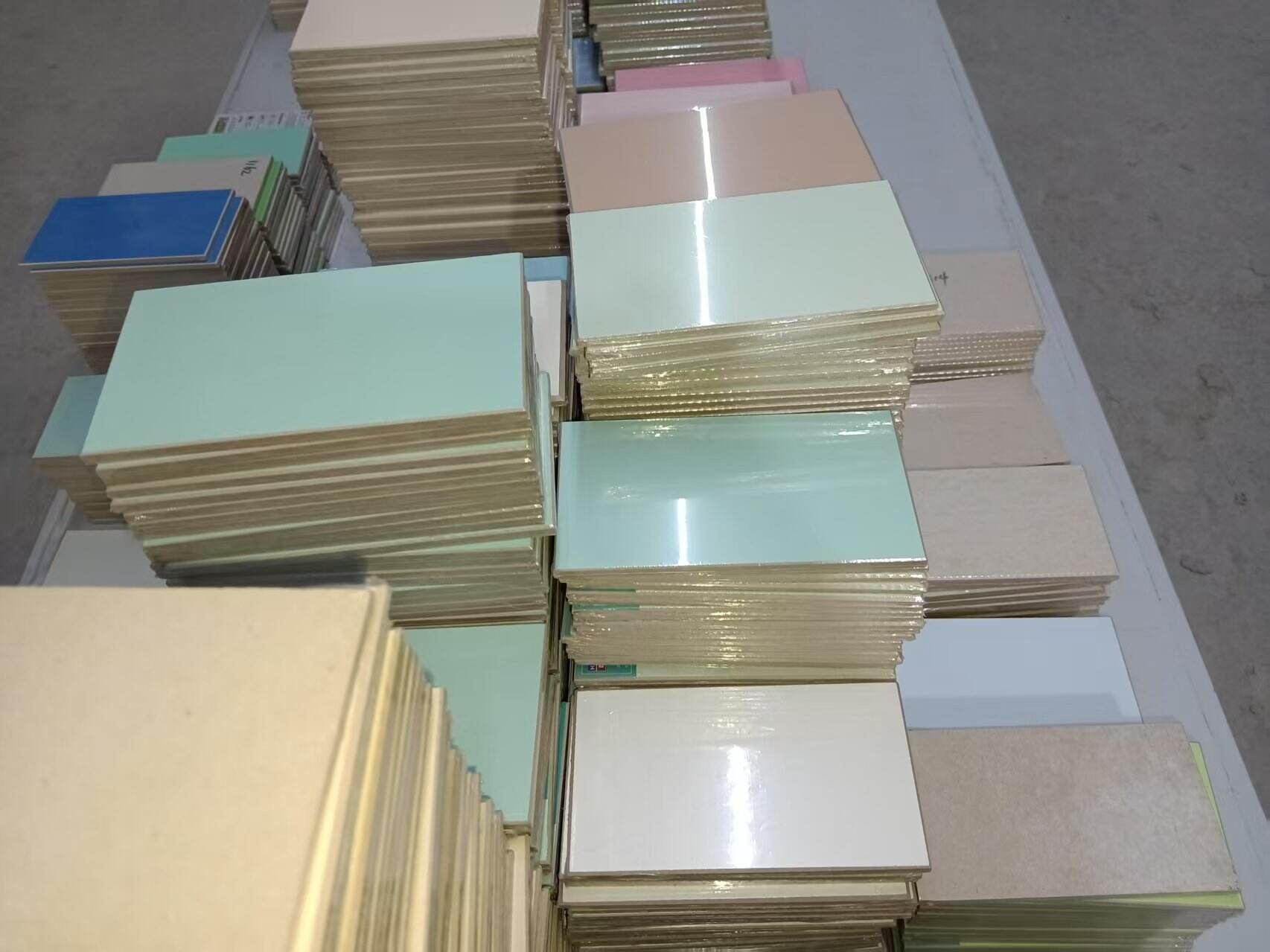

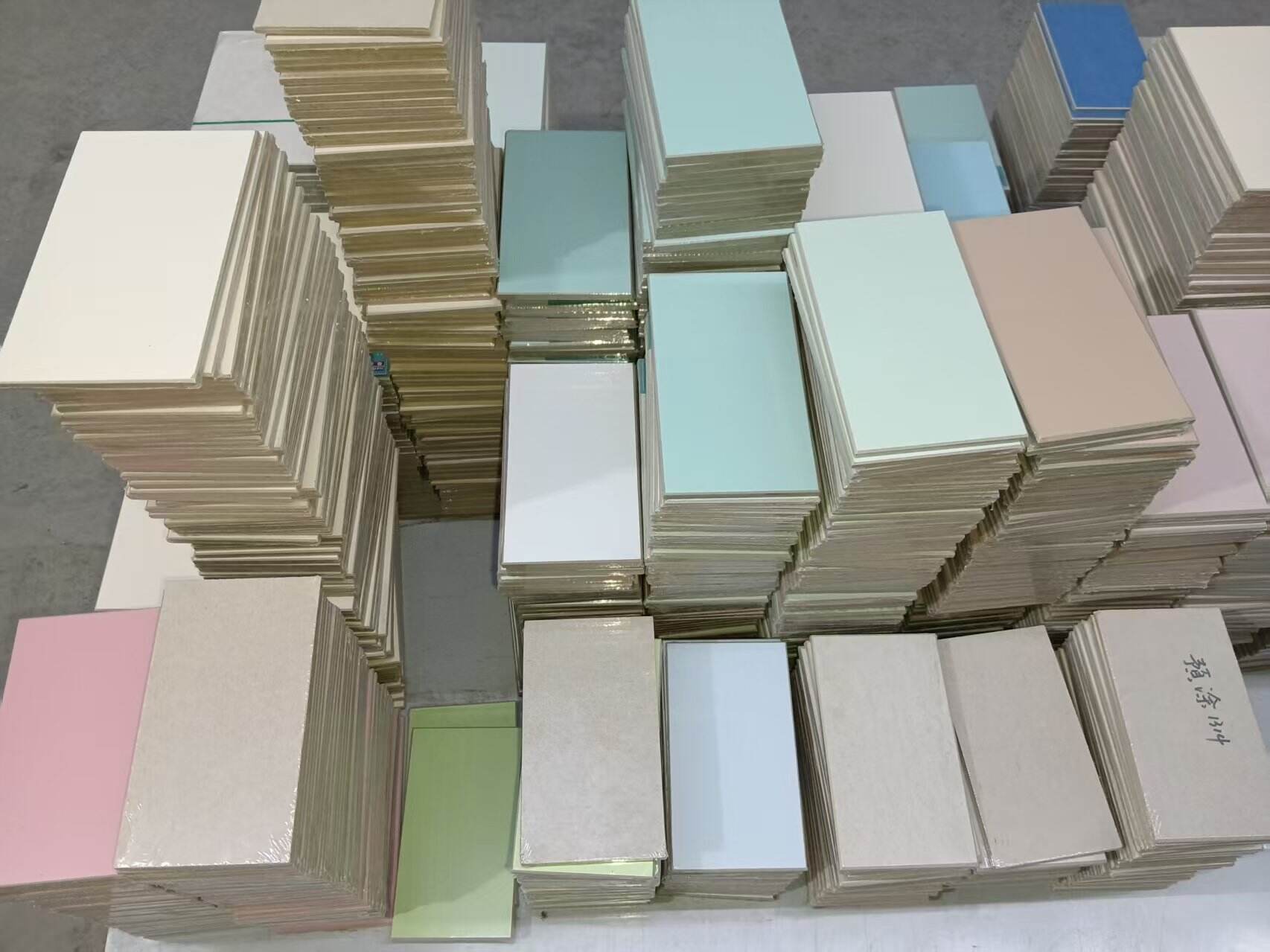

Inorganic Pre-coated Board Surface Effects (custom colors available upon request)

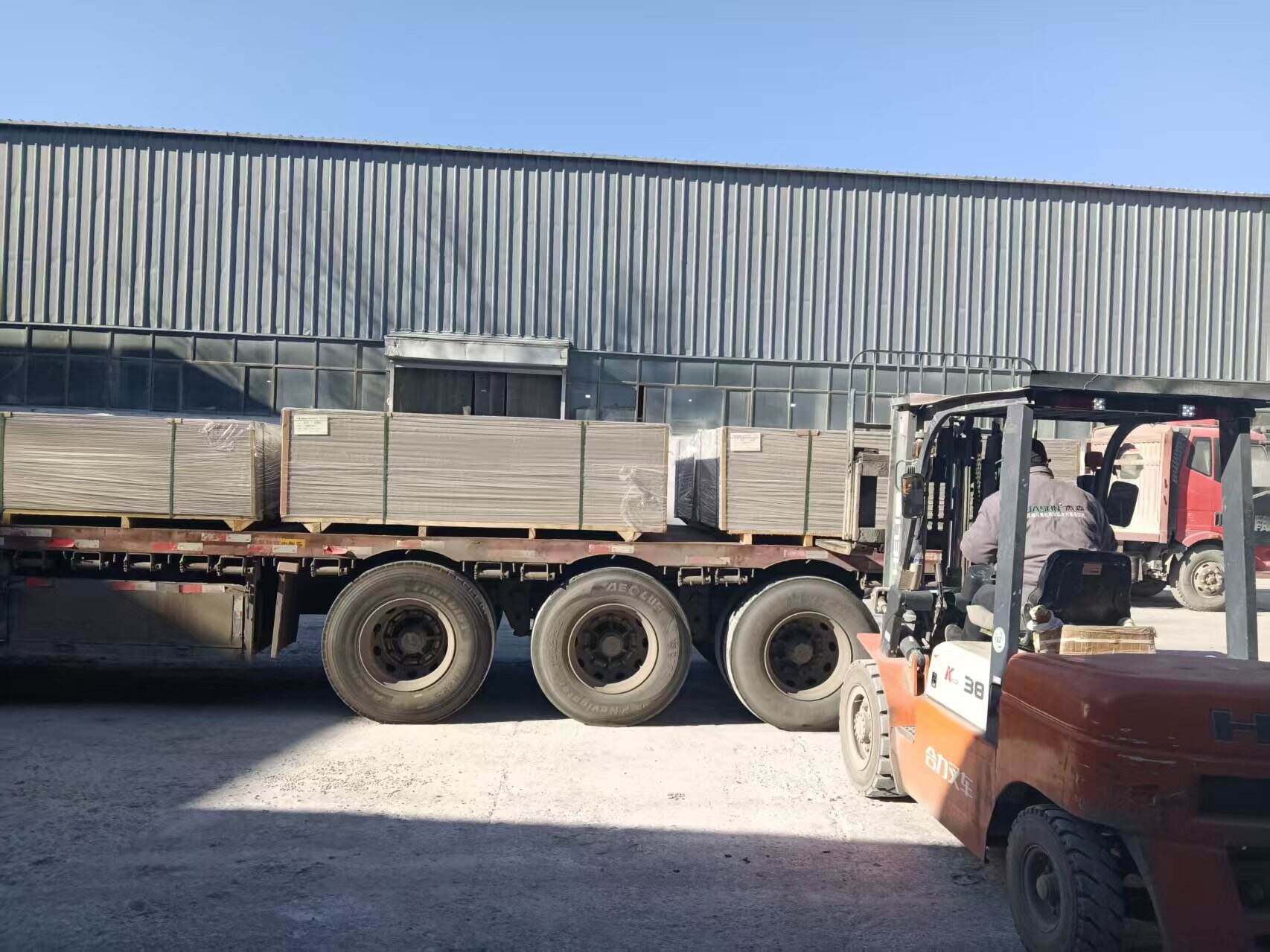

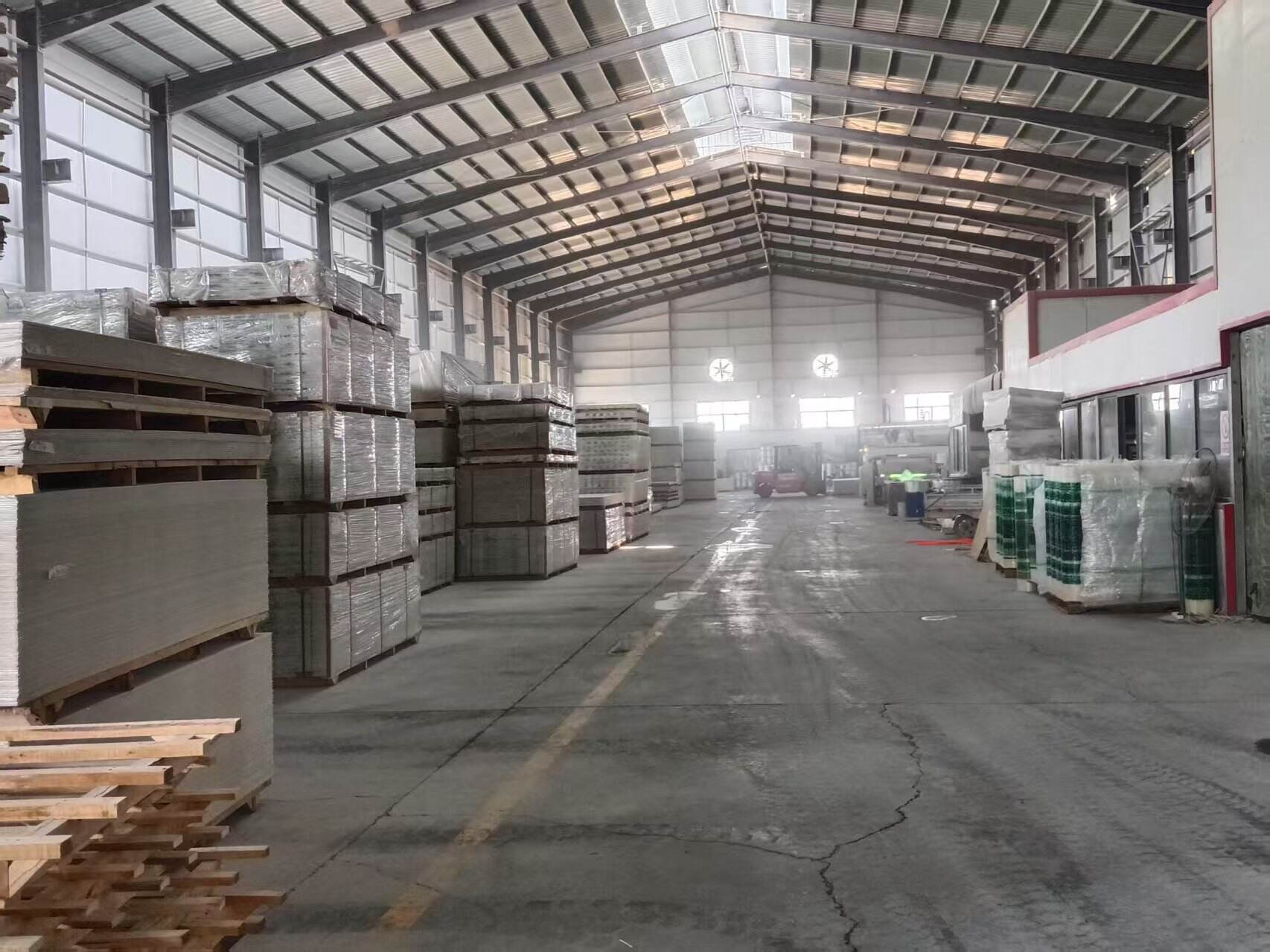

Storage and Handling
Before installation, inorganic pre-coated boards should be kept in their original packaging as much as possible and stored indoors. If stored outdoors, the storage area must be flat, free of standing water, and clear of overhead lifting equipment or heavy objects. Boards should be placed on wooden pallets 20 cm above the ground, with soft materials between boards. Boards of the same type should be stacked together, with clearly identifiable labels on each stack, and covered with waterproof tarpaulins. Temporary barriers should be set up around the storage area to prevent damage caused by personnel movement.

Installation
Mobile scaffolding is generally used for installing inorganic pre-coated boards. In addition to ensuring the load-bearing capacity of the scaffolding, the following factors should be considered:
(1) Distance between the curtain wall surface, work surface, and axis;

(2) Spacing and positioning of control points relative to the reference surface, ensuring visibility;

(3) Spacing of installation angles relative to the reference surface;

(4) Horizontal deviation from the control elevation;

(5) Vertical distance from the building and distances between floors.

When handling inorganic pre-coated boards, both ends should be lifted simultaneously to avoid damaging the surface oxide film or coating. During wall panel installation, only one board should be lifted at a time, using the manufacturer’s specialized clamps at two points along the board’s length. Lifting should be done slowly, with wind ropes for control, avoiding collisions with already installed panels. Protruding parts of scaffolding should be wrapped with soft materials.

Installation Methods
1. Pressure strip method: Features prefabricated assembly, dry installation, modular design, quick and convenient, structurally stable, removable, and serviceable.

2. Back-hanging method: Features structural stability and safety, easy installation adjustments, and reserved gaps for constructing ventilated curtain wall systems.

3. Adhesive method: Features easy installation, cost-effectiveness, and minimal space occupation.

4. Visible nail method: Features safety and reliability, quick and convenient installation, good cost-effectiveness, with decorative nails matching the board color to highlight a rugged aesthetic.

Widely used in interior and exterior walls of subways, hospitals, tunnels, schools, sports venues, laundry rooms, office buildings, and other areas. Performs exceptionally well in humid environments such as kitchens, bathrooms, and balconies. Inorganic pre-coated boards, also known as clean boards, fireproof boards, and anti-Bet boards, use 100% asbestos-free calcium silicate boards as the substrate. These new decorative materials are surface-treated with special polyester, offering effective fire resistance, aging resistance, and water resistance while maintaining a bright appearance that conveys cleanliness. Although China has numerous industrial chains, the inorganic pre-coated board industry in China is not yet leading globally. Basic components have become a bottleneck restricting the advancement of China’s manufacturing industry toward high-end development. During the 12th Five-Year Plan period, the government will continue to increase the localization of the board industry.
